Deep Links

Deep links let you connect a process or decision view in Cockpit directly to an external application, carrying the current process/decision context along with it. This is useful when a business process is complemented by a separate system — for example an archive, a document viewer, or a case-management tool — and users need a one-click way to jump from a process instance into that system, already scoped to the right record. Deep links are configured entirely in config.json — no custom frontend code needs to be built or deployed.

For End Users

A configured deep link shows up as either a tab or a button, depending on how it was set up:

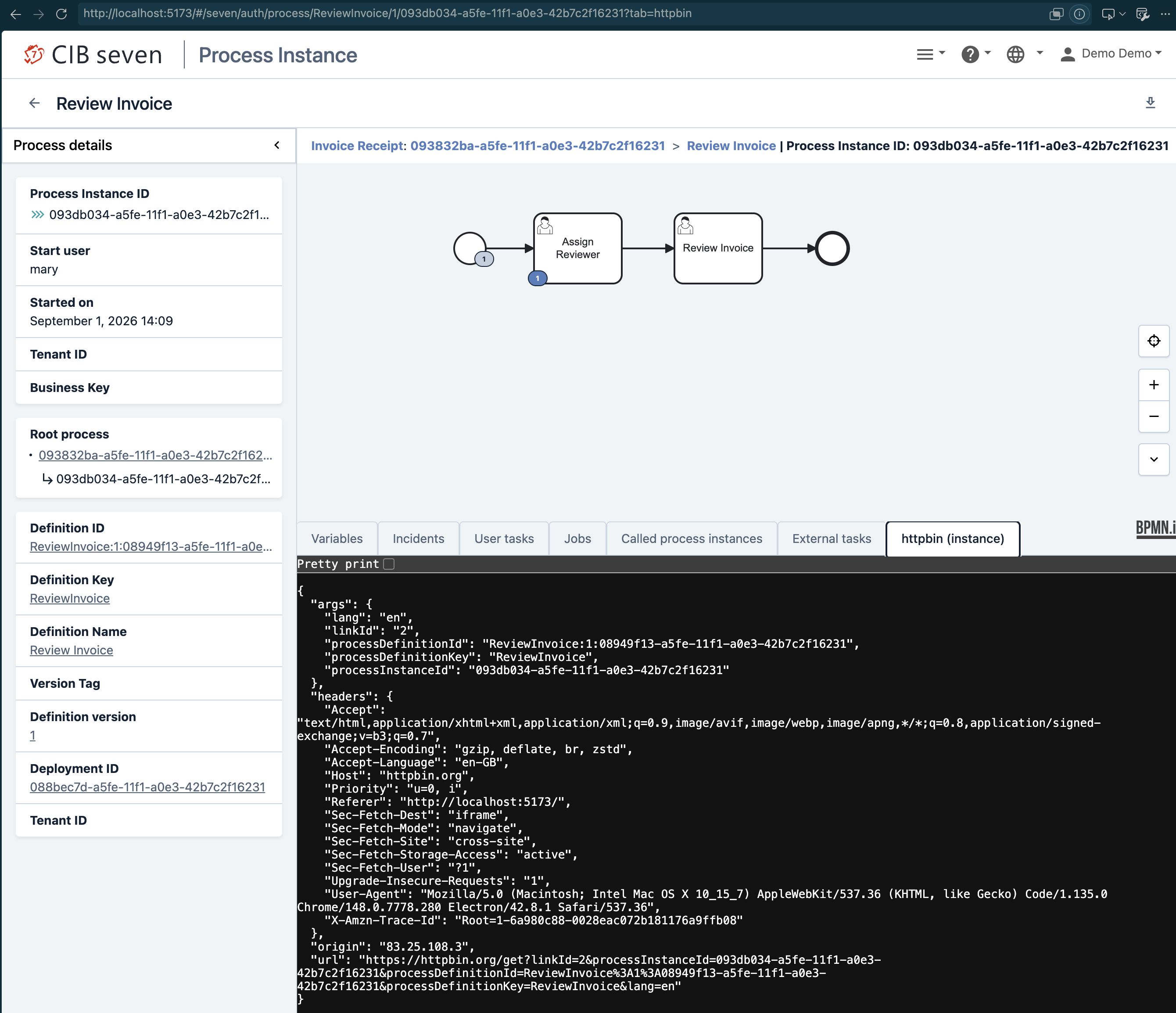

• Tab-type links add an extra tab next to the standard ones (Variables, Incidents, …) on a process instance, a process definition’s instance list, a decision definition version, or a decision instance. Clicking the tab loads the external application directly inside the page, embedded in an iframe — no new browser tab or window opens.
• Button-type links add a button next to the existing action buttons — for example on the process instance variables table, the process definition/instance action bar, a decision definition version, or a decision instance’s inputs/outputs. Clicking the button opens the external application in a new browser tab/window. Hovering over the button shows a tooltip with the link’s label and target URL.

In both cases, the external application automatically receives the relevant context — such as the process instance id or business key — appended as parameters to the configured URL (see Appended Parameters below). Once translated, the tab or button shows a proper label; until then, it falls back to showing the configured id.

For Administrators

Deep links are configured via a deepLinks section in config.json. Each of the four sections corresponds to a view in Cockpit, and lists the deep links available there:

"deepLinks": {
  "processDefinition": [
    { "id": "myExternalTab", "url": "https://external.example/app", "type": "tab" }
  ],
  "processInstance": [
    { "id": "myExternalTab", "url": "https://external.example/app", "type": "tab" },
    { "id": "myExternalButton", "url": "https://external.example/app", "type": "button", "target": "myExternalButtonWindow", "icon": "mdi-file-document-outline" }
  ],
  "decisionDefinition": [],
  "decisionInstance": []
}

Entry Properties

• id — required. Must match ^[a-zA-Z0-9_-]+$ (letters, digits, - and _ only) and must not collide with a built-in tab id (e.g. variables, instances, inputs). These characters are safe unencoded both as a JSON string value and as a URL query parameter value, and ./~ are deliberately excluded so the id can’t be confused with the .-separated nesting used by the deepLinks.{section}.{id}.title translation key below.
• url — required. Must be an absolute URL pointing at the external application.
• type — required to make the entry visible. Either tab (embedded iframe tab) or button (opens in a new browser tab/window). An entry with a missing or unrecognized type passes id/url validation but is not shown as either a tab or a button — silently, with no console warning — so double-check this value if a configured link doesn’t appear.
• target — optional, button-type entries only. Passed as the window name to the browser’s window.open(). Defaults to _blank, which always opens a new tab/window; set it to a fixed, non-_blank name to reuse the same popup window across repeated clicks instead. Has no effect on tab-type entries.
• icon — optional, button-type entries only. A Material Design Icons CSS class shown next to the button’s label (e.g. mdi-file-document-outline). Defaults to mdi-checkbox-marked-circle-plus-outline when omitted. Has no effect on tab-type entries.

An invalid entry — a bad id format, a missing url, an id colliding with a built-in tab, or a duplicate id — is dropped with a console warning; it doesn’t break the other configured deep links.

Label

Add a translation key deepLinks.{section}.{id}.title to your translations_*.json, for example deepLinks.processInstance.myExternalTab.title. This label is used for the tab or button, and — for tab-type entries — as the embedded iframe’s title. If the key is missing, all three fall back to the plain id, never a broken-looking raw translation key.

Appended Parameters

The following parameters are automatically appended to the configured URL’s query string, depending on the section:
